Pickled Chinese cabbage Fish Paste and Watermelon Paste Packaging Machine: Intelligent Solution for Modern Food Industry

In today's rapidly developing food industry, the packaging process of sauce products is facing both challenges and opportunities. Pickled Chinese cabbage fish sauce and watermelon sauce are two condiments with different flavors and textures. Their packaging technology puts forward different technical requirements for equipment. Pickled Chinese cabbage fish sauce usually contains minced fish, pickled Chinese cabbage granules and chili oil, with a certain viscosity and solid content; Watermelon sauce, on the other hand, often appears in a delicate or fruit pulp like jam state, with high sugar content and strong fluidity. Modern packaging machine technology has developed specialized solutions to address the characteristics of these two products.

First of all, from the perspective of equipment type, pickled Chinese cabbage and fish sauce packaging machines mostly use piston or rotor pump type quantitative filling systems. The piston filling machine is capable of processing sauces containing larger particles. By adjusting the piston stroke, the filling volume of each bag or bottle can be precisely controlled to avoid measurement errors caused by particle blockage. At the same time, the contact part between equipment and materials is usually made of 304L stainless steel, which has excellent corrosion resistance, so as to cope with the corrosion of pickled Chinese cabbage and fish sauce to metals caused by salt and acidic substances. In addition, to prevent the separation of oil and sauce, the hopper is often equipped with a low-speed stirring device to ensure the uniformity of the materials during the filling process.

The watermelon sauce packaging machine focuses more on high-precision flow meters or gear pump filling methods. Due to the high sugar content and low viscosity of watermelon sauce, it is easy to cause dripping at the filling nozzle. Therefore, modern equipment is often equipped with anti dripping and leak valves and suction devices. For watermelon sauce containing fruit pulp particles, equipment with a large aperture filling head can be used, and gentle stirring can be used to maintain the integrity of the fruit pulp. In the sealing process, watermelon sauce packaging often uses heat sealing technology to ensure that there is no material jamming or leakage at the sealing point, extending the shelf life of the product.

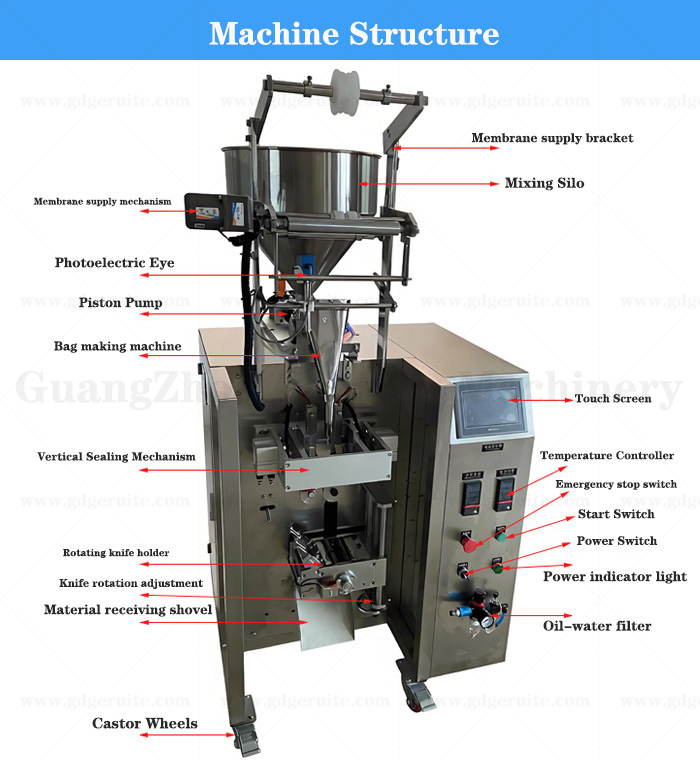

Sample display of sauce packaging machine:

Both types of packaging machines have reached a high level of automation. From feeding, measuring, filling, sealing to outputting finished products, the entire process can be coordinated by a PLC control system, combined with a touch screen human-machine interface. Operators only need to set parameters to complete the switch. Some models also integrate a visual inspection system, which can monitor the filling volume and sealing quality in real time, and eliminate unqualified products. In terms of hygiene design, equipment generally adopts a detachable structure, which is convenient for daily cleaning and disinfection and meets national food safety standards.

It is worth noting that flexible production has become an industry trend. By changing the filling components and adjusting the program parameters, a packaging machine can quickly switch between pickled Chinese cabbage fish sauce and watermelon sauce, thus helping the production enterprises to reduce equipment investment costs and improve market response speed. In addition, with the increasing demand of consumers for small packaging and portable seasoning sauce, packaging machines are also developing towards high-speed, multi column, and low loss directions.

Although the packaging machines for pickled Chinese cabbage fish sauce and watermelon sauce are designed for different material characteristics, they are evolving towards intelligence, hygiene and flexibility. Choosing appropriate packaging equipment not only improves production efficiency and ensures product quality, but also serves as an important foundation for food companies to win market competition. In the future, with the deepening application of sensing technology and artificial intelligence, sauce packaging machines will achieve higher levels of autonomous decision-making and adaptive adjustment, bringing more possibilities to the seasoning industry.
