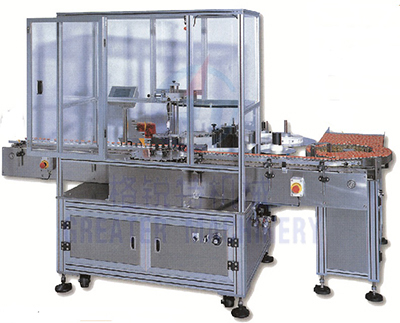

Name：High speed rotary round bottle labeling machine

一、 Product Introduction:
Mainly suitable for equipment in the pharmaceutical industry that rotates and labels penicillin bottles at high speed for half or full circumference.

二、 Technical parameters:
model; GRT-Y902
Production capacity: 150-400 bottles/minute
Labeling accuracy: ± 1.0 mm
Label inner diameter: 76 mm
Outer diameter of label: 420 mm（
Label size: length 10-300mm, height 10-200mm
Labeling object size: diameter 40-120mm
Working pressure: 0.6Mpa
Power supply and output: 380 50Hz, 4.0Kw
Weight: 3500kg
Machine size: 2400x1700x1600mm
三、 Performance characteristics:
1. The whole machine is made of 304 stainless steel and aluminum alloy materials, with stable performance and simple and easy to understand structural design and operation.
2. The star shaped gear structure is labeled, and a visual system is added for high-speed labeling, precise labeling, and increased production output.
3. All electrical components come from well-known foreign brands to ensure stable production.
4. The labeling mechanism adopts a wheel attached rolling bottle body, making the labeling more secure.
5. Siemens PLC system, human-machine dialogue interface, multifunctional panel operation, fault prompt function.

Optional equipment:
Inkjet printer, coding machine, transparent label photoelectric sensor, material receiving turntable, removal device, etc.
